PT-506 Water Pressure Transmitter | Integrated Molded Plug & AEC-Q100 Chip Anti-Water Hammer Sensor
Product Overview:
1,The PT-506 Pressure Transmitter is a high-grade, digitally calibrated pressure sensor engineered for VFD water pumps, packaged water booster stations, and HVAC hydronic loops. Building upon robust anti-water hammer dampening, the PT-506 features an integrated custom-molded electrical plug, providing exceptional waterproof sealing and moisture resistance to prevent electrical short-circuits in high-humidity pump rooms.
2,At its core, the PT-506 is driven by an AEC-Q100 automotive-grade signal conditioning IC, complete with a 24-bit high-resolution ADC, dynamic amplification, and MCU-based digital calibration. This advanced architecture delivers outstanding electromagnetic immunity against Variable Frequency Drive (VFD) noise while protecting the internal sensing element from violent pressure spikes. Compact, cost-effective, and exceptionally durable, the PT-506 serves as a direct drop-in replacement for premium imported water pressure sensors.
Key Features & Highlights:

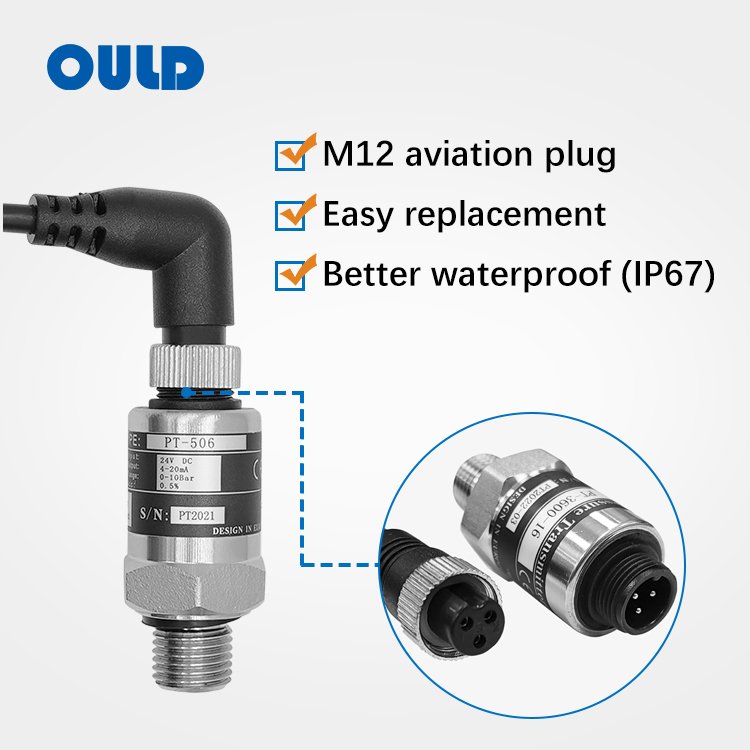

1,Integrated Custom-Molded Waterproof Plug: Overmolded connector architecture offers superior ingress protection, moisture resistance, and mechanical strain relief in harsh, wet environments.
2,AEC-Q100 Automotive-Grade Chipset: Powered by an AEC-Q100 compliant processor with a 24-bit ADC, dynamic gain amplification, and MCU logic for ultimate EMC performance and continuous accuracy.

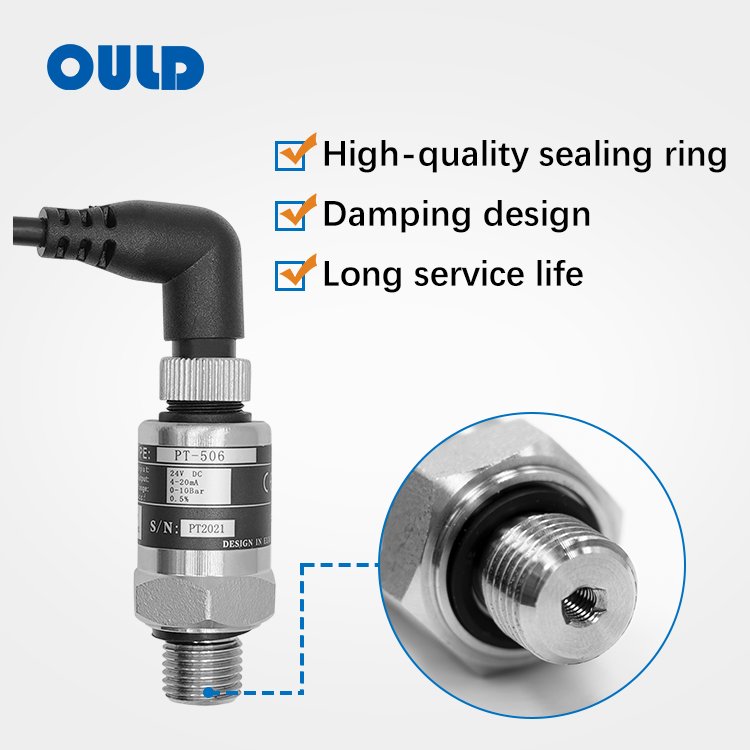

3,Engineered Anti-Water Hammer Protection: Built-in shock absorber dampens severe hydraulic pressure surges, protecting internal components during sudden pump startups.
4,MCU-Driven 16-Bit Digital Calibration: Integrated low-drift 16-bit DAC and reprogrammable EEPROM eliminate thermal drift and maintain long-term zero stability.
5,Compact Form Factor & Direct Replacement: Space-saving mini design allows easy installation in crowded pump manifolds while offering seamless compatibility with leading global sensor brands.
Applications:
1,VFD Pumps & Booster Packages: Secondary water supply systems, non-negative pressure equipment, and high-rise pump stations.
2,High-Humidity & Sub-Grade Water Systems: Underground pump rooms, municipal water treatment, and RO filtration skids.
3,HVAC Hydronic Networks: Chilled/hot water circulating pumps, cooling tower lines, and chiller pressure monitoring.
4,Fire Protection & Municipal Hydraulics: Automatic fire sprinkler line monitoring and water distribution networks.
PT-506 pressure transmitter features an integrated molded waterproof plug, AEC-Q100 automotive-grade IC, and anti-water hammer design for VFD pumps and HVAC systems.
