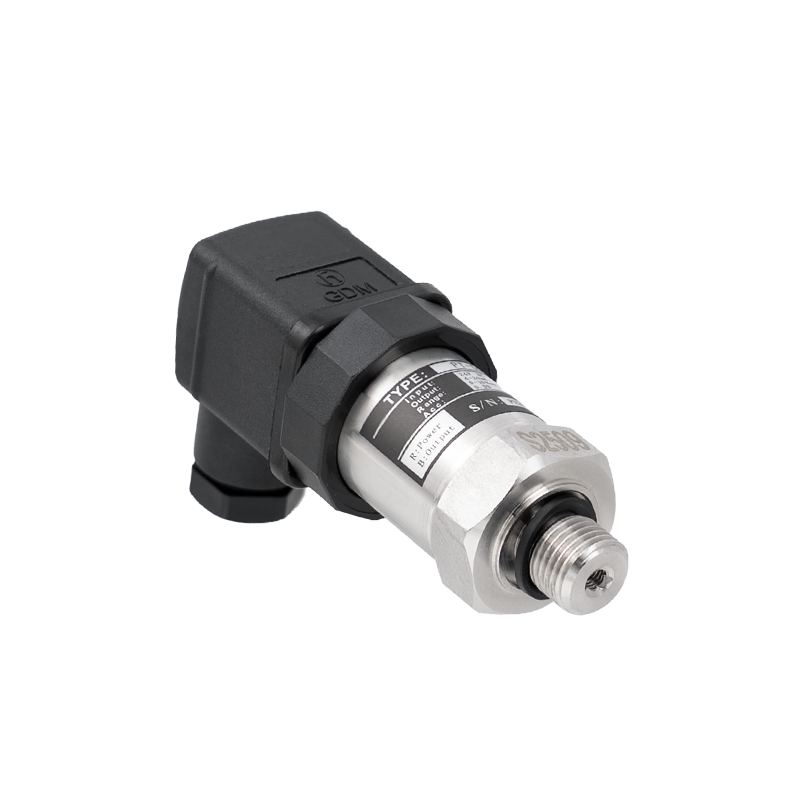

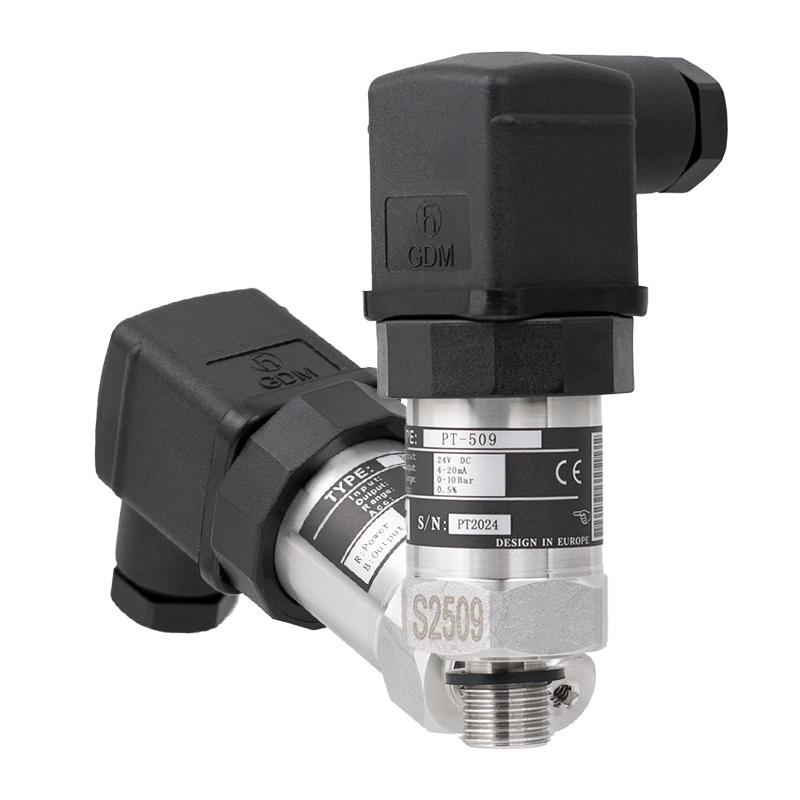

PT-509 Water Pressure Transmitter | Anti-Water Hammer Sensor for VFD Pumps & HVAC

Product Overview:

1，The PT-509 Pressure Transmitter is a high-performance, cost-effective pressure sensor specifically designed for VFD water pumps, packaged water booster systems, and HVAC hydronic loops. Built with an industrial-grade high-sensitivity sensing core and precise signal conditioning circuitry, the PT-509 converts hydraulic pressure into reliable, standard analog outputs (such as 4–20mA / 0–5VDC).

2，To withstand severe pressure surges caused by rapid valve operations or pump startups, the PT-509 features an engineered anti-water hammer design that dampens destructive pressure spikes. With its compact footprint, excellent electromagnetic compatibility (EMC), and superior long-term zero stability, the PT-509 serves as an ideal direct replacement for premium imported pressure sensors in water treatment and building automation systems.

Key Features & Highlights：

1，Engineered Anti-Water Hammer Protection: Integrated pulse dampener absorbs severe hydraulic pressure surges, safeguarding the sensing diaphragm against mechanical fatigue and damage.

2，VFD & Booster System Optimization: High immunity to electromagnetic interference (EMC) prevents signal noise caused by Variable Frequency Drives, ensuring continuous and smooth data output.

3，Cost-Effective Import Replacement: Matches the performance and mounting dimensions of leading global sensor brands, reducing OEM equipment costs without compromising quality.

4，Compact Architecture & Easy Integration: Space-saving mini design enables quick and effortless installation in tight piping manifolds and compact booster skids.

5，Full-Span Thermal Compensation: Advanced digital temperature calibration minimizes thermal drift, maintaining exceptional accuracy across varying fluid and ambient temperatures.

Applications：

1，VFD Pumps & Booster Packages: Secondary water supply systems, non-negative pressure booster sets, and constant-pressure pump stations.

2，HVAC Hydronic Networks: Chilled and hot water circulating pumps, cooling tower lines, and chiller plant pressure management.

3，Water Treatment & Filtration: Reverse osmosis (RO) units, water purification skids, and industrial wastewater lines.

4，Municipal Hydraulics & Fire Safety: Pipeline pressure telemetry and automatic sprinkler system monitoring.
