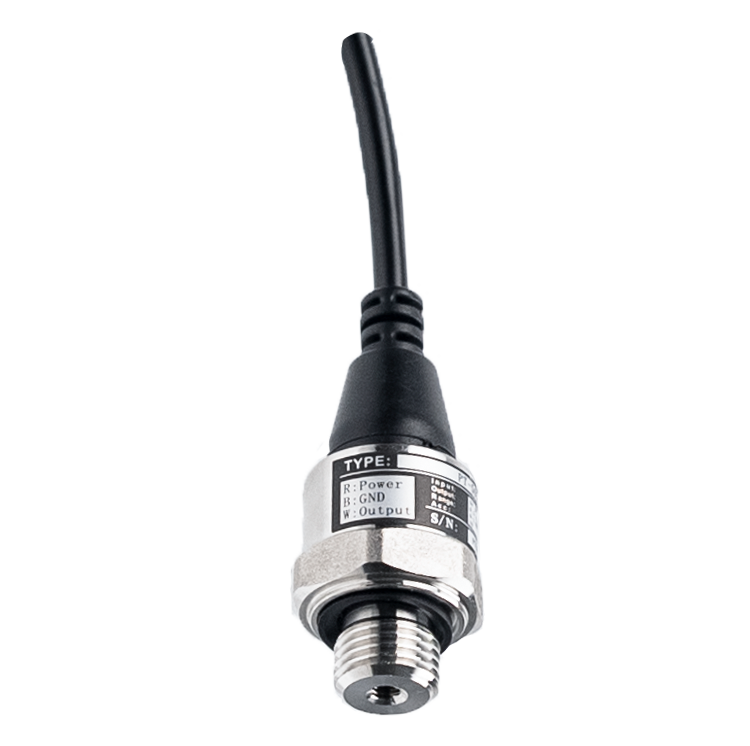

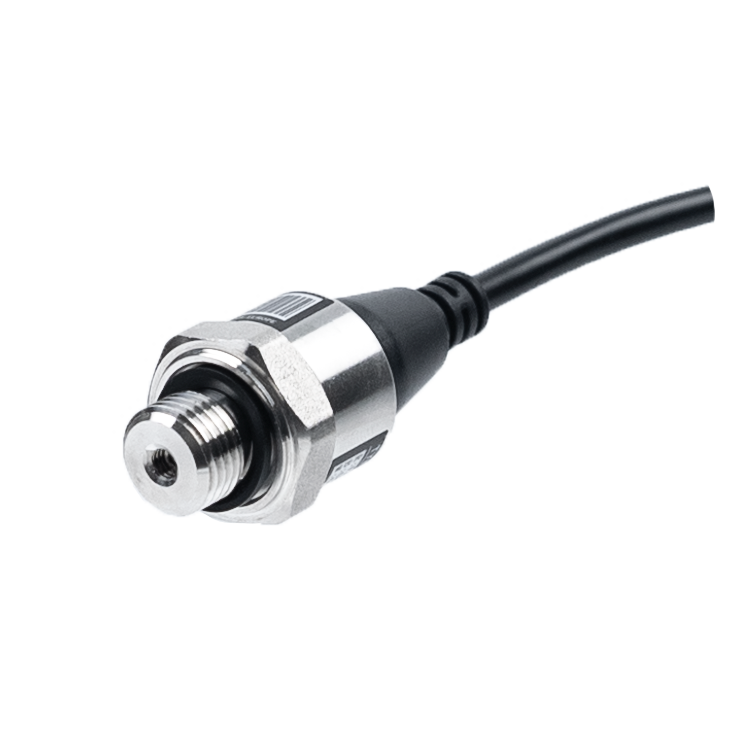

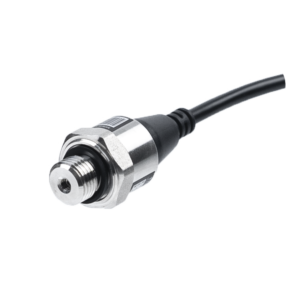

PT-505 Pressure Transmitter | IP68 Overmolded Waterproof Sensor with Vented Cable
Product Overview:
1,The PT-505 Pressure Transmitter is a heavy-duty, ultra-high protection pressure sensor engineered for water treatment, outdoor submersed equipment, and harsh industrial process control. Constructed with a corrosion-resistant 304 stainless steel body, the PT-505 features an overmolded cable-end injection technology, achieving a full IP68 waterproof rating to protect internal electronics from moisture intrusion and dynamic environment risks.
2,To prevent atmospheric pressure measurement errors, the PT-505 incorporates an integrated air vent tube inside the cable, ensuring real-time ambient pressure reference and zero gauge drift. Combined with an engineered anti-water hammer design and precision full-span temperature compensation, the PT-505 provides accurate analog outputs and outstanding long-term stability across VFD pumps, marine hydraulics, compressors, and HVAC cooling systems.
Key Features & Highlights:
1,IP68 Overmolded Cable Sealing: Specialized overmolding at the cable connection ensures complete immersion-grade waterproofing and robust strain relief for humid/submerged conditions.
2,Integrated Vent Tube for Vented Gauge Accuracy: Features an internal atmospheric reference tube inside the cable to eliminate error caused by barometric fluctuations.
3,Engineered Anti-Water Hammer Protection: Built-in shock suppression architecture protects sensitive diaphragms against violent hydraulic pressure spikes.

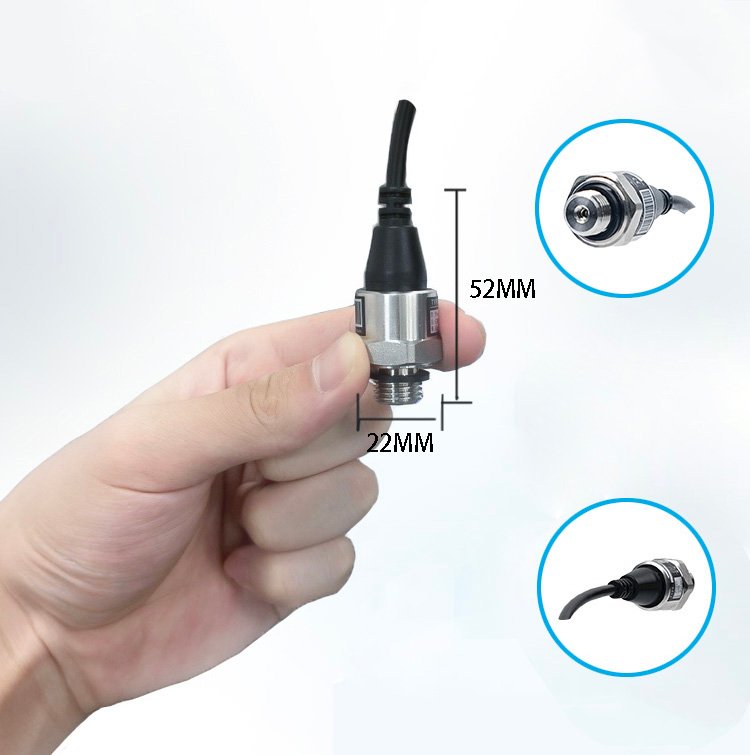

4,304 Stainless Steel & Compact Profile: Rugged, corrosion-resistant housing with a space-saving footprint, ideal for tight machinery manifolds and OEM integration.
5,Advanced Signal Conditioning & EMC Immunity: Driven by a high-integration bridge sensor processor with full-span thermal compensation, offering fast response and excellent anti-interference.
6,Customizable Process Connections: Fully customizable thread options, pressure ranges, and cable lengths to meet various industrial specifications.
Applications:
1,VFD Water Pumps & Booster Packages: Secondary water supply equipment, underground pump stations, and municipal booster skids.
2,Water Treatment & Environmental Systems: Effluent processing, RO purification systems, and outdoor wet-environment monitoring.
3,HVAC & Industrial Chillers: Cooling towers, chillers, and refrigerant/water circulation lines.
4,Marine, Mobile Hydraulics & Compressors: Shipboard hydraulics, mobile machinery, and heavy-duty compressors.
PT-505 IP68 waterproof pressure transmitter features an overmolded cable, integrated vent tube for true gauge pressure, and anti-water hammer protection for VFD pumps.
